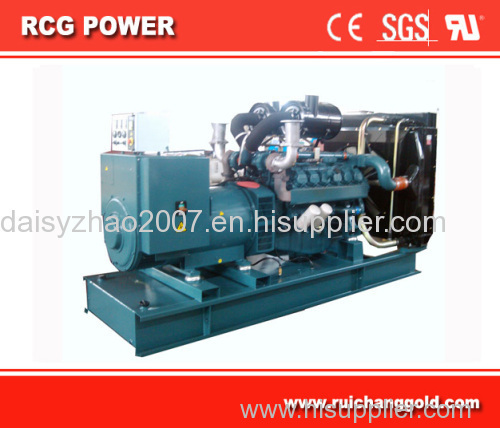

500kva diesel generator power by Korea Doosan engine R-DS500 manufacturer from China Ruichang Gold Generating Equipment(Wuxi) Manufacturing Co., Ltd

Product Detail

Model No.: R-DS500

Packing: wooden case& standard expor...

Output Type: DC

Speed: 1500

Rated Power: 48-5200kw

Production Capacity: 50 sets/month

Delivery Date: 20 working days

Brand Name: RCG POWER

Frequency: 60HZ/1800rpm is also availa...

Rated Voltage: 230/400

1)Korea Doosan diesel engine
2) professional test equipment
3) 8-24 hour base fuel tank
4) high temperature operation
5) low fuel consumption

Generating Set Specification

MODEL	R-DS500
PRIME POWER (KVA/KW)	500/400
STANDBY POWER(KVA/KW)	550/440
Rated voltage(V)	400/230
Rated speed(rpm)	1500
Rated frequency(Hz)	50
Power factor	0.8
Ambient temperature(℃)	40
Altitude(m)	1000
Connection type	3 phase 4 wires
ENGINE MANUFACTURER	DOOSAN
Model	P180LE
Rated Power(kW)	443
No. of cylinders & configuration	V-type 10 cylinders
Method of operation	4-stroke
Speed regulation	Electric governor
Starting system	DC 24V Electronic start
Cooling method	Closed-circuit cooling system
Total displacement(L)	18.273
Compression ratio	15:1
Bore×Stroke(mm)	128×142
100% Load fuel consumption(L/h)	111.6
ALTERNATOR MANUFACTURER	STAMFORD
Number of Phase	3
Connection Type	3Phase and 4Wires
Number of Bearing	1
Power Factor	0.8
Protection Grade	IP23
Terminal	12
Winding/ Pitch	100% Copper 2/3 Pitch
Cooling Fan	Cast alloy aluminum
Exciter Type	Brushless, Self-Exciting
Insulation Class, Temperature Rise	H/H
Telephone Influence Factor( TIF)	TIF <50 / THF<2%
Total Harmonic TGH/THC	<1.5% at no load / <5% at load
Voltage Regulation, Steady State	≤±1%
Sustained Short-Circuit Current	300%(3 in):10s
CONTROL SYSTEM	DSE SERIES
